Industry leading companies, B&M Racing and Flowmaster have joined forces and are proud to introduce our new Powersports division: XDR – Xtreme Dirt Racing. All XDR performance products have been painstakingly designed for the ultimate in off-road performance. Developed to address specific weaknesses of the most popular side by sides, XDR products not only provide a performance advantage, but also eye-catching good looks that let people know you’re serious about the quality, strength, performance and reliability of your rig.
The initial release of XDR products have been specifically designed for the Can-Am Maverick X3, Polaris RZR and Yamaha YXZ1000R. Our new product line-up includes both “Forestry qualified” and “Competition only” slip-on exhaust systems, gated race shifters with lockout features, Delta Boost performance tuners, grab handles and more. We are fully committed to developing industry leading products which we feel are all necessary tools for providing the ultimate in performance for your side by side.
| Download Name | File Size |
| fm_warranty_general.pdf | 88.58KB |
| 7704_instructions.pdf | 2.57MB |
| Make | Model | Submodel | Years |
| Yamaha | YXZ1000R SE | Base | 2016 - 2020 |
| Yamaha | YXZ1000R SS SE | Base | 2017 - 2021 |
| Yamaha | YXZ1000R SS XT-R | Base | 2020 - 2021 |
| Yamaha | YXZ1000R SS | Base | 2017 - 2020 |
| Yamaha | YXZ1000R | Base | 2016 - 2021 |
| Assembly Required | No |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds), Nickel (Metallic) |
| California Proposition 65 Required | Yes |
| CARB (California) Compliant | No |
| Compatible Brands/Models | Yamaha YXZ 1000R |

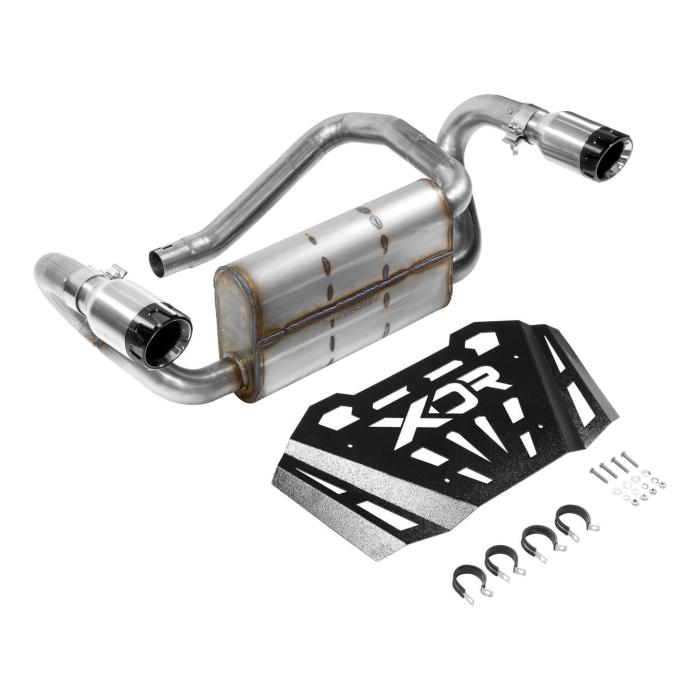

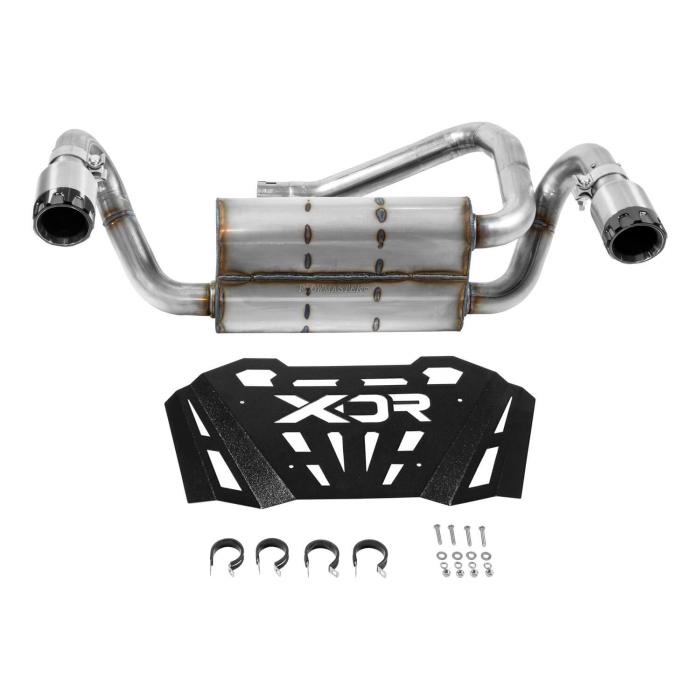

| Components Included | Muffler, Tips, Heatshields, Hardware and Instructions |
| Decibal Rating (dB) | Not Available |
| Emission Code | 4 |
| Exit Location | DOR |
| Flange Quantity | Not Included |
| Header Pipe Quantity | Not Included |
| Included Safety Features | Heat Shield |
| Mounting Hardware | Yes |
| Mounting Hardware Included | Yes |
| Mounting Method | Bolt On |
| Muffelr Body Width (in) | 4 |
| Muffler Body Height (in) | 9.75 |
| Muffler Body Length (in) | 17 |
| Muffler Body Material | 409 Stainless |
| Muffler Color/Finish | Natural |
| Muffler Configuration | Single |
| Muffler Inlet Count | 1 |
| Muffler Inlet Inside Diameter (in) | 2.14 |
| Muffler Internal Description | Absorption |
| Muffler Outlet | 2 |
| Muffler Outlet Inside Diameter (in) | 2.14 |
| Muffler Quantity | 1 |
| Muffler Style | Transverse |
| Mufflers Included | Yes |
| Overall Exhaust System Diameter (in) | 2.25 |
| Part Type | Exhaust System Kit |
| Pipe Material/Type | 409 Stainless |
| Power Sport Item Type | Rear Section Exhaust |
| Product Type | Exhaust Systems / Kits |
| Proposition 65 | www.P65Warnings.ca.gov |
| Special Fitment Info | Competition use only. Not emissions compliant |
| System Color/Finish | Natural |
| Tip Cut | Angle |
| Tip Diameter (in) | 3.5 |
| Tip Finish | Polished/Black anodized |
| Tip Included | Yes |
| Tip Length (in) | 8.5 |
| Tip Material | 304 Stainless/Aluminum |
| Tip Quantity | 2 |
| Tip Shape | Round |
| Tip Style | Double Wall |
| USFS Approved Spark Arrestor | Yes |
| Y-Pipes Included | No |
