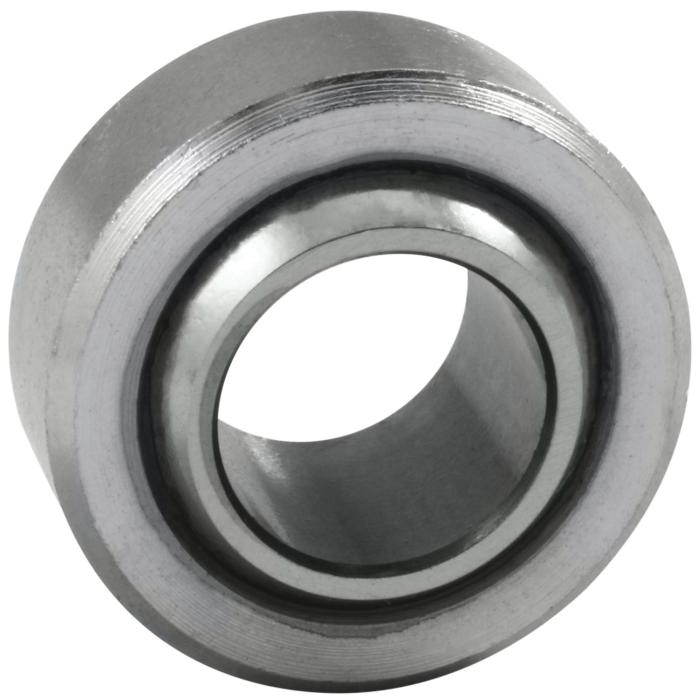

QA1’s COM-T Series alloy/chromoly steel spherical bearings are a traditional commercial grade bearing and the most popular plain spherical bearing for a wide range of applications. Many COM bearings are made from carbon steel, QA1’s COM Series are made from alloy/chromoly steel, delivering better wear and longer life. COM-T includes a self-lubricating PTFE liner.
From bolt-on products that get you behind the wheel faster, to experienced technicians available to help increase your 60’ times or handle curves with confidence, everything we do is designed to get you out on the road.
Whether your goal is a Saturday night sprint across the checkered flag or a slow, easy cruise down main street, we have the suspension and driveline products you need for the experience you want.
No matter what you drive, we want you to #goDRIVEit!
| Approximate Bearing Weight (lbs.) | 0.204 |
| Ball - Finish | Chrome plated |
| Ball - Heat Treated | Y |
| Ball - High Misalignment | N |
| Ball - Material | 52100 Bearing Steel |
| Ball - Precision Ground | Y |
| Ball Diameter Reference (inches) | 1.187 |
| Ball Width (W) + .000 - .005 (inches) | 0.75 |
| Bore (B) + .0015- .0005 (inches) | 0.75 |
| Chamfer Reference (M) (inches) | 0.044 |
| Flat Diameter (O) Reference (inches) | 0.92 |
| Housing Width (T) ± .005 (inches) | 0.593 |
| Measurement | Inch |
| Misalignment Angle aº | 9 |
| Outside Diameter (D) + .0000 - .0007 (inches) | 1.4375 |
| Part Type | Suspension Bearing |
| Proposition 65 | www.P65Warnings.ca.gov |
| Race - Material | Alloy Steel |
| Self-Lubricating | PTFE LINED |
| Ultimate Radial Static Load (lbs.) | 47880 |
| Warranty Time | 1 YR |
